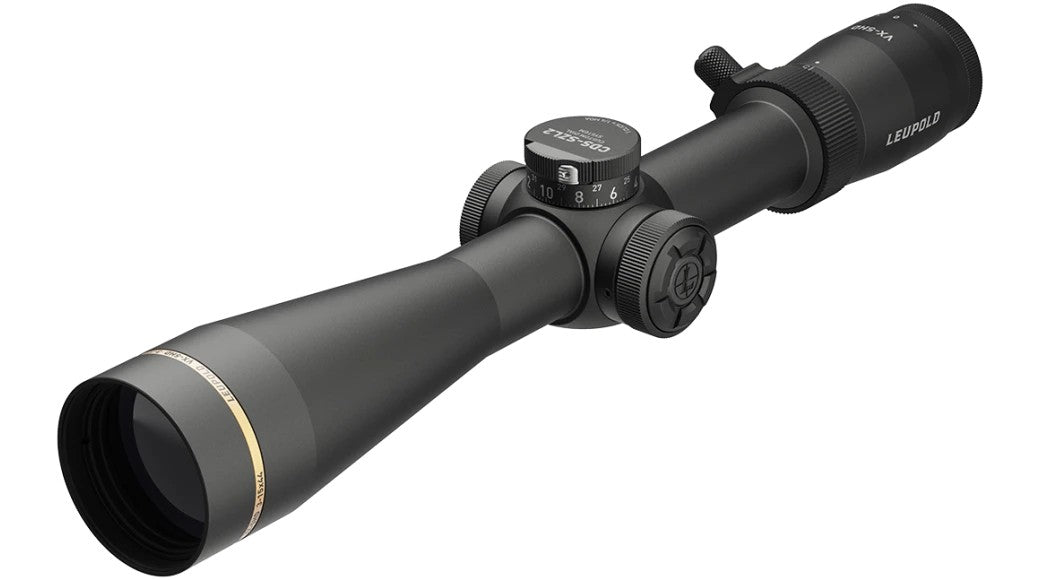

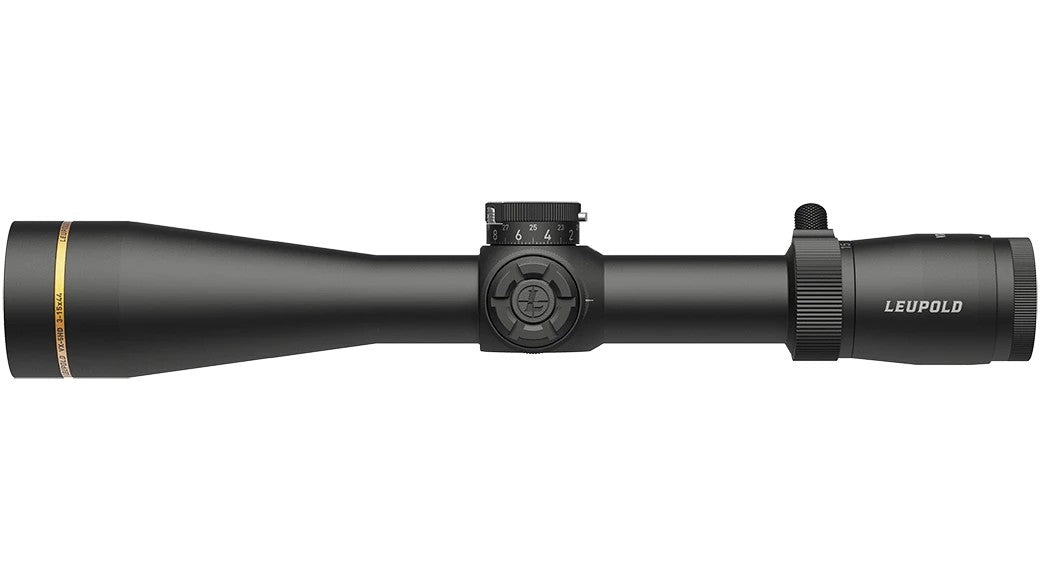

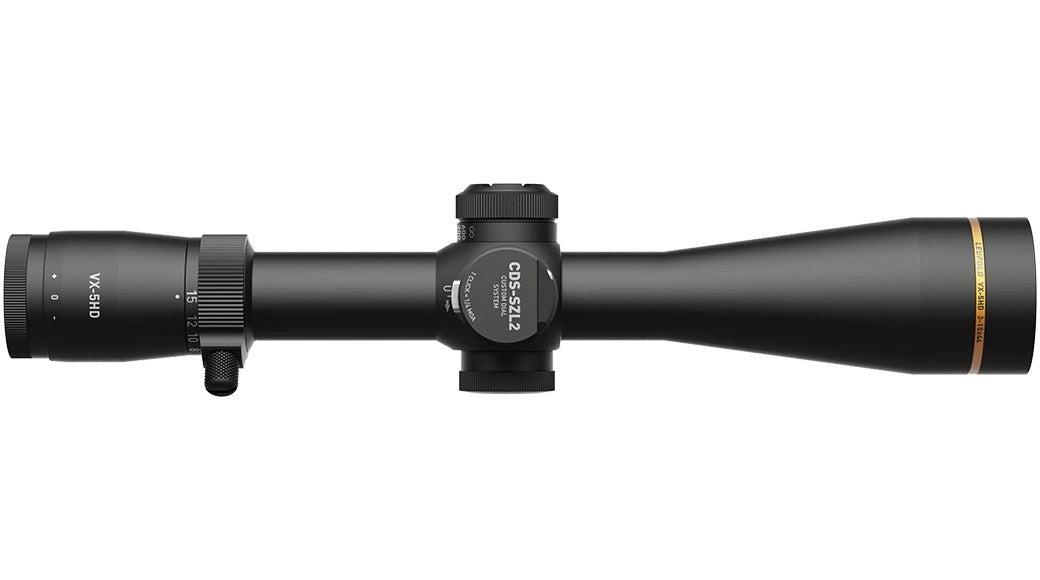

LEUPOLD VX-5HD GEN 2 3-15X44 30mm ILLUM CDS-SZL2 SF FIREDOT DUPLEX
The VX-5HD Gen 2 3-15x44mm is built around Leupold’s Professional-Grade Optical System, delivering best-in-class light transmission, exceptional clarity, and glare-cutting performance when it matters most. The versatile 5:1 zoom range adapts to any environment—from dense timber to open country—giving hunters the flexibility and the precision to make every shot count.
Guard-Ion lens coatings keep your glass clear by repelling water, dirt, and oil, while the illuminated reticle, fast-focus eyepiece, and integrated throw lever ensure fast, confident target acquisition. Dial in with enhanced competition-grade adjustments and our innovative tool-free SpeedSet™ elevation dial. Every VX-5HD Gen 2 is eligible for one free custom dial to match your preferred ammo and environmental conditions.
Waterproof, fogproof, and built for the backcountry, every VX-5HD Gen 2 is designed, machined, and assembled in the USA and backed by Leupold’s Lifetime Guarantee.
Dimensions
A Total Length (in) - A |
13.5 |
B Total Mounting Space (in) - B |
5.4 |
C Front Mounting Space (in) - C |
1.3 |
D Rear Mounting Space (in) - D |
2.3 |
E Eyepiece Length (in) - E |
3.3 |
F Objective Length (in) - F |
4.8 |
G Objective Diameter (in) - G |
2.1 |
H Eyepiece Diameter (in) - H |
1.8 |
K Maintube Diameter (mm/in) - K |
30 mm |
Specifications
Battery Type |
CR2032 |
Bluetooth enabled |
No |
BDC Dial Included |
No |
Custom BDC Dial Compatible |
Yes |
Daylight Bright Illumination |
Yes |
Elevation Adjustment Type |
CDS-SZL2 |
Electronic Reticle Level |
No |
Locking Dial |
Yes |
Magnification Type |
Variable |
Nightvision Compatible Illumination |
No |
Reticle Focal Plane |
Second Focal Plane |
Revolution Indicator |
Yes |
Reticle |
Illum. FireDot Duplex |
Rezero Type |
SpeedSet |
Reticle Type |
Illuminated |
Adjustable Objective |
No |
Precision Side Focus |
Yes |
Straight-Wall BDC Dials Included |
No |
Switch Type |
Push Button |
Windage Adjustment Type |
Pop-Up Rezero |
Weight (oz) |
20.1 |
Elevation Adjustment Value per Click |
1/4MOA |
Elevation Adjustment Range (MOA) |
85 |
Elevation Adjustment Range (MIL) |
24.7 |
Elevation Adjustment Range (cm @ 100m) |
247 |
Elevation Adjustment Per Revolution |
20 MOA |
Elevation Dial Travel Limit |
38MOA |
Windage Adjustment Value per Click |
1/4MOA |
Windage Adjustment Range (MOA) |
85 |
Windage Adjustment Range (MIL) |
24.7 |
Windage Adjustment Range (cm @ 100m) |
247 |
Windage Adjustment Per Revolution |
20 MOA |
Magnification Max |
15 |
Magnification Min |
3 |
Objective Lens Diameter (mm) |
44 |
Linear FOV Low Mag (ft@100yds) |
37.8 |
Linear FOV High Mag (ft@100yds) |
8 |
Angular FOV Low Mag (Degrees) |
7.2 |
Angular FOV High Mag (Degrees) |
1.5 |
Eye Relief Low Mag (in) |
3.8 |
Eye Relief High Mag (in) |
3.9 |
Minimum Parallax-Free Distance (yd) |
50 |
Battery Life (hr), Low Intensity |
1600 |
Battery Life (hr), Medium Intensity |
1000 |
Battery Life (hr), High Intensity |
300 |
Number of Illum Settings |
8 |
