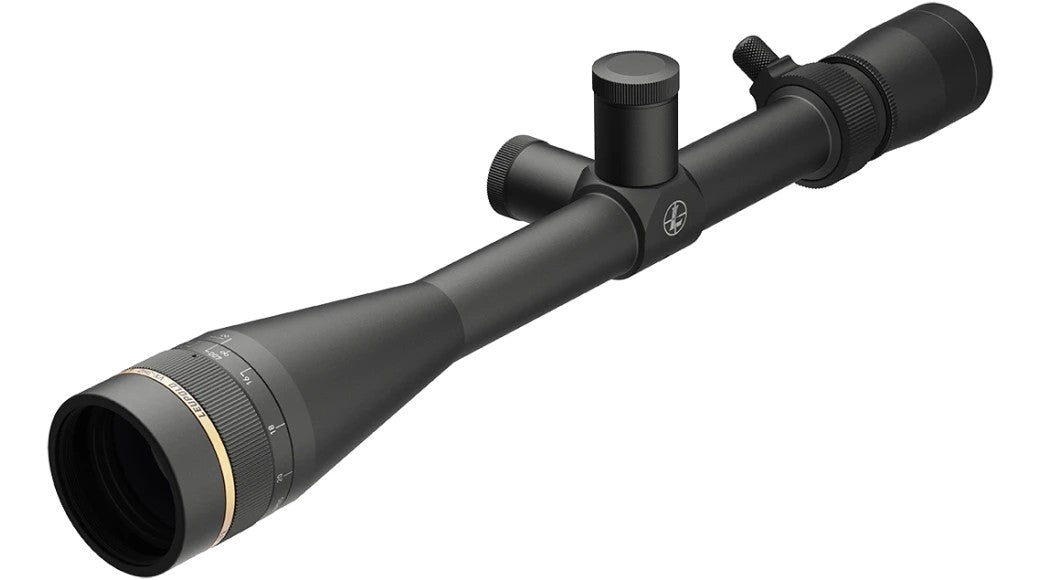

LEUPOLD VX-3HD 6.5-20X40 EFR CDS-T FINE DUPLEX
The VX®-3HD 6.5-20x40mm delivers legendary performance in an incredibly tough and lightweight package. It's the perfect workhorse for taking mid to long-range shots from the firing line.
Using Leupold’s Elite Optical System, the VX-3HD provides superior dawn-to-dusk light transmission for a bright image when it matters most, high-performance glare reduction in harsh light, and the resolution and clarity diehard hunters and shooters demand. It features a front parallax focus ring that adjusts from infinity all the way down to 10 meters, making it ideal for airguns or rimfire rifles. And we also gave it match-grade repeatability and ergonomic controls that are easy to read and use, even with gloves.

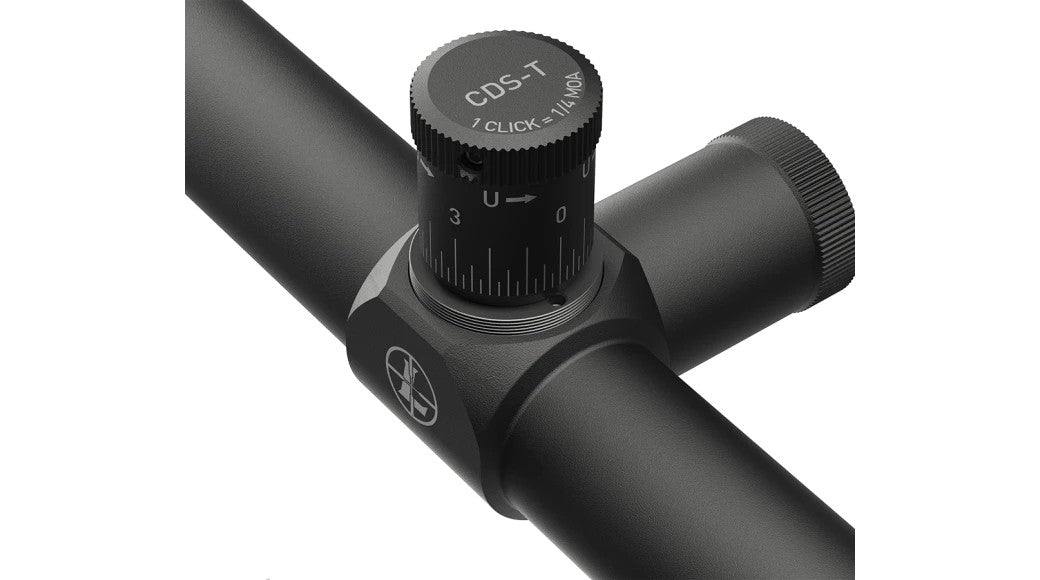

Everything we put into your VX-3HD is there to help you dominate the competition. With its CDS-T dial, you'll get access to the entire adjustment range of your scope in precise ¼-MOA increments. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Dimensions
A Total Length (in) - A |
14.49 |
B Total Mounting Space (in) - B |
6.67 |
C Front Mounting Space (in) - C |
2.97 |
D Rear Mounting Space (in) - D |
2.51 |
E Eyepiece Length (in) - E |
3.08 |
F Objective Length (in) - F |
4.7 |
G Objective Diameter (in) - G |
2.03 |
H Eyepiece Diameter (in) - H |
1.56 |
K Maintube Diameter (mm/in) - K |
1 Inch |
Specifications
Adjustable Parallax |
Side Focus |
Bluetooth enabled |
No |
BDC Dial Included |
No |
Custom BDC Dial Compatible |
Yes |
Daylight Bright Illumination |
No |
Elevation Adjustment Type |
CDS-Target |
Electronic Reticle Level |
No |
Illuminated Reticle |
No |
Locking Dial |
No |
Magnification Type |
Variable |
Motion Sensor Technology (MST) |
No |
Nightvision Compatible Illumination |
No |
Reticle Focal Plane |
Second Focal Plane |
Revolution Indicator |
Yes |
Reticle |
Fine Duplex |
Rezero Type |
Set Screw |
Reticle Type |
Second Focal Plane |
Precision Side Focus |
No |
Straight-Wall BDC Dials Included |
No |
Weight (oz) |
18.2 |
Elevation Adjustment Value per Click |
1/4MOA |
Elevation Adjustment Range (MOA) |
45 |
Elevation Adjustment Range (MIL) |
13.1 |
Elevation Adjustment Range (cm @ 100m) |
130.9 |
Elevation Adjustment Per Revolution |
15 MOA |
Elevation Dial Travel Limit |
Total Scope Travel |
Windage Adjustment Value per Click |
1/4MOA |
Windage Adjustment Range (MOA) |
45 |
Windage Adjustment Range (MIL) |
13.1 |
Windage Adjustment Range (cm @ 100m) |
130.9 |
Windage Adjustment Per Revolution |
15 MOA |
Magnification Max |
20 |
Magnification Min |
6.5 |
Objective Lens Diameter (mm) |
40 |
Linear FOV Low Mag (ft@100yds) |
14.3 |
Linear FOV High Mag (ft@100yds) |
5.5 |
Angular FOV Low Mag (Degrees) |
2.7 |
Angular FOV High Mag (Degrees) |
1.1 |
Eye Relief Low Mag (in) |
4.4 |
Eye Relief High Mag (in) |
3.6 |
Minimum Parallax-Free Distance (yd) |
10 |
